Clap weirdness

Hey all.

I've more or less successfully put it together.

I have a couple of problems left and i'm wondering if anyone has some input, lets start with the clap.

I read this: viewtopic.php?f=16&t=146&start=10
and measured all of the steps in "figure 13", all good up to step 6 like:

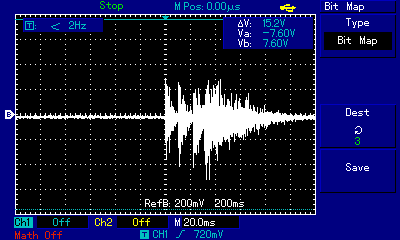

<- from pin 5 of the 6912 (ic23)
But.. Not step 7:

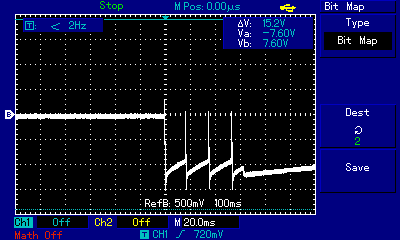

<- from pin 8 of 6110 (ic22)

my clap from main out. First with tm3 ~50%, then back to 0% and up to 100% back to 50% then added high hat for volume reference
http://quby.frontdesign.com/~xlarge/yoc ... o_clap.wav

It's a bit strange that my board is printed with "1.0" but it does not match pictures and eagle brd-file.
Did i also get a prototype board? viewtopic.php?f=16&t=413&p=2602&hilit=1.0+match#p2602

xlarge wrote:
It's a bit strange that my board is printed with "1.0" but it does not match pictures and eagle brd-file.
Did i also get a prototype board? viewtopic.php?f=16&t=413&p=2602&hilit=1.0+match#p2602

Dear xlarge,

Please post a picture of your Clap section. If it appear that you receive a proto Yocto board contact Vincent: contact@e-licktronic.com.

Best regards,
e-licktronic

Thanks for replying.

http://quby.frontdesign.com/~xlarge/yoc ... o_clap.jpg

Right. Emailed.

Confusion cleared up thanks to Vincent.

I actually was looking at the prototype board eagle files and comparing to my board.
I re-downloaded the schematics and board file now and they match what i've got. So i do NOT have a proto board.

Clap is still more like a snare though

Any luck with the clap so far?

Nah, nothing new yet.

I'm in the dark... So i'll do what i can. Replace the BA6110 and see what happens.

Is there a reference any where what i should see if i measure/scope with the ba6110 out?

Verfied all transistors, resistors and capacitors.
Replacing the 6110 didn't do jack shit but going over all solder joints did.
I think i had some trouble around R372/C128. Now i've got something that's closer to a clap at least.

What do you think? Any obvious areas i should look at now?

http://quby.frontdesign.com/~xlarge/yoc ... volume.wav

So i went over the noise section again (put in 68k @ R127) and now i'm getting this after a lot of fiddling with handclap trimpot.

http://quby.frontdesign.com/~xlarge/yoc ... justed.wav

The clap on mine sounds similar to yours but the volume of the clap is very low. I'm not sure what would be the cause. I tried adjust adjusting the trims but as I make it louder it sounds a lot less like a clap.
