About to finish a fully working NAVA!
![Razz :P](./images/smilies/icon_razz.gif)
Last instrument with a problem is the RIMSHOT : No sound on output (main & dedicated)
After some tests, it seems that there's no signal (on scope) on J4 (on the main board).
i've measured all the different labeled points of the instrument on the PCB (see below).
I also have some signal on the rimshot volume pot (pins 2 & 3).
Here are the other measurements of the Rimshot voice :

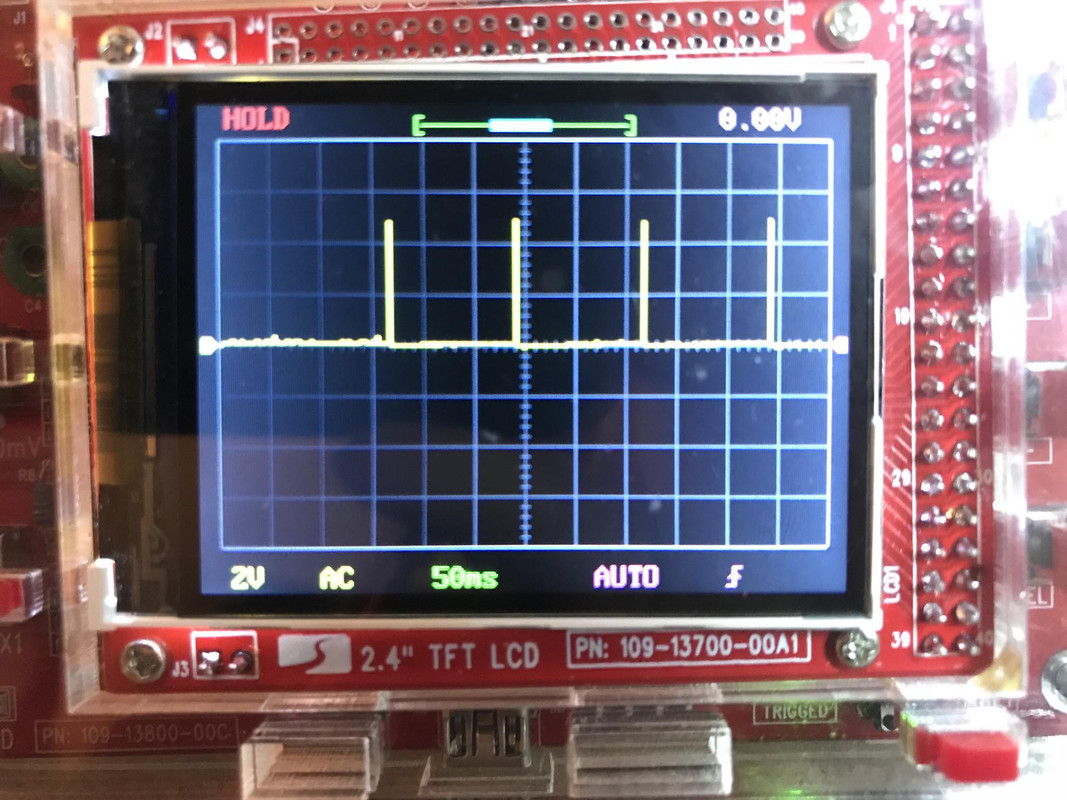

TRIG point
![Image](https://i.postimg.cc/t491rn63/trig.jpg)
ACC point
![Image](https://i.postimg.cc/65vT6LrL/acc.jpg)
ENV point
![Image](https://i.postimg.cc/T3cbGJxN/env.jpg)

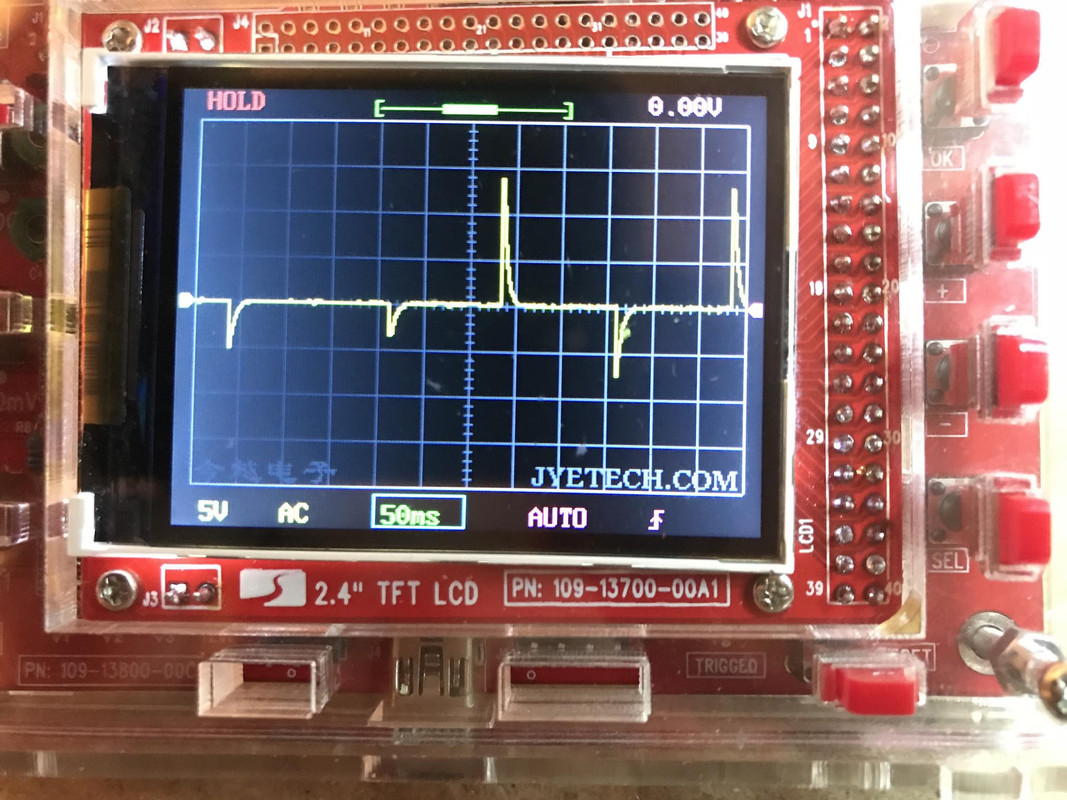

F1 point
![Image](https://i.postimg.cc/xdxbNjcK/f1.jpg)
F2 point
![Image](https://i.postimg.cc/sfZZ1ryh/f2.jpg)
F3 point
![Image](https://i.postimg.cc/8PRJBm7k/f3.jpg)
What should be the next thing to check ??
Thanks !
