Board routing

I'd like to get a visual of the ground planes and such of the main board. The .brd file doesn't include routing

I already saw an image of the power+output board (see below), which was kinda helpful. Is there such an image for the main board too?

Hi,,...i am new user here. As per my knowledge you can't get the image of the main board from any outsource. You can go for the manuals if they exist otherwise it is difficult to get. Can you please tell me your purpose to demand the board image? Also i would like to say if you will get the image board from any source then its not sure that it will be correct or fake.

Because I want to see a good overview of the ground plane routing on the main board, mainly as a basis for improving background noise

Dear Rv0,

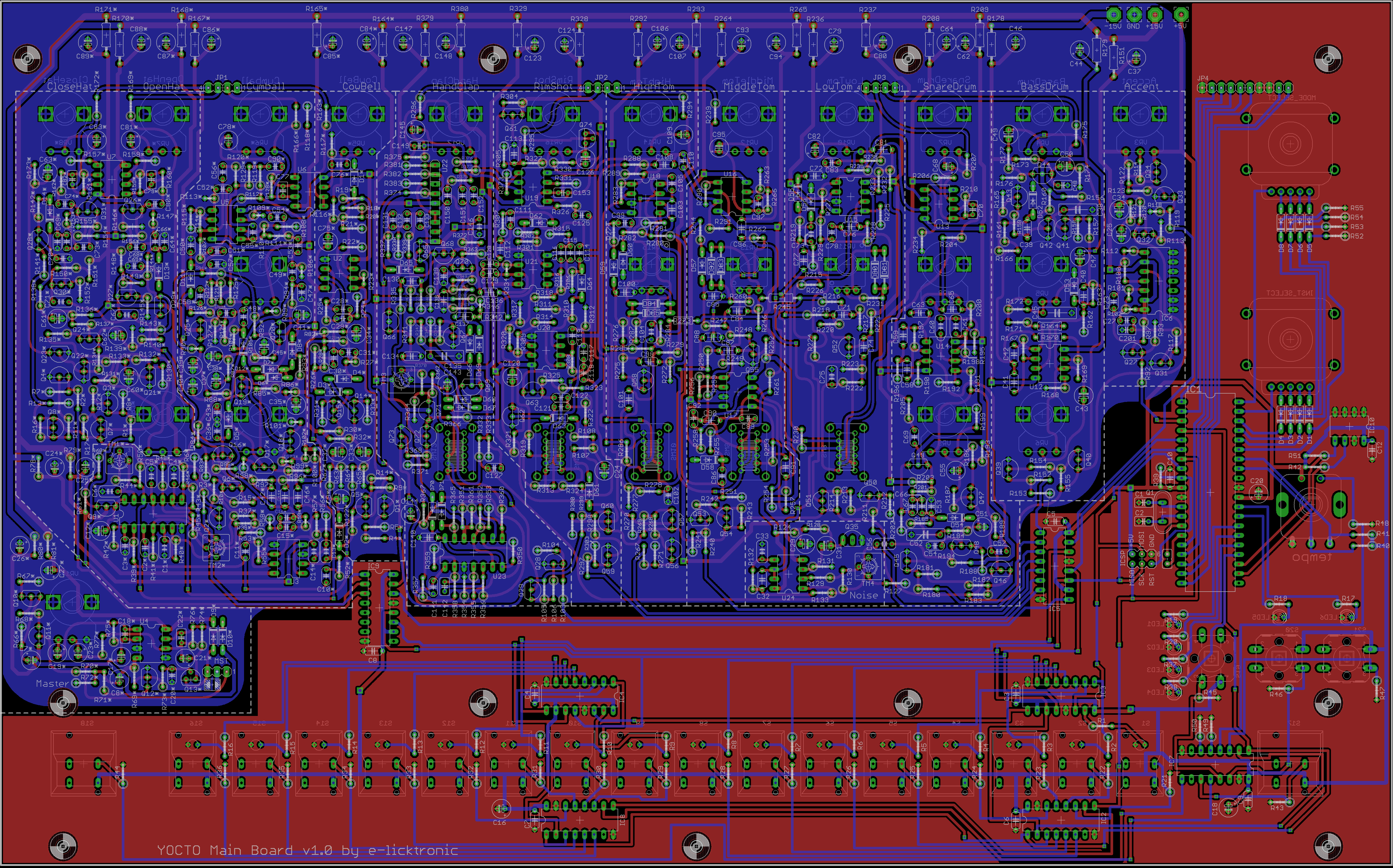

Here is the main board ground plane

: Yocto v1.0 ground plane.png (1.37 MiB)
Viewed 15740 times

Best regards,
e-licktronic

Thanks for following up on this!

Edit: great that this includes the full routing, i got a lot more than i asked for.. thanks!

e-licktronic wrote:Dear Rv0,

Here is the main board ground plane
Yocto v1.0 ground plane.png
Best regards,
e-licktronic

Thanks Vincent.

Can you export the v1.1 when its done?

Hello All,

Did anyone find a solution to the Ground Hum that occurs when using trigger outs?
