And another Yocto is born (With internal power supply)

Hi All,

I would just like to share my finished Yocto.

It has been an on and off built in the past three months and I think it took me about 25 hours to complete. I didn't run into any major issues, other than to change some resistor values to get the correct values and I had to change my 4011BE to a 4011UB.
And it worked flawless ever since.

This weekend I had the pleasure to collect my housing which was one of the ElSchtroumpf group buy. And to meet ElSchtroumpf in person;
Again KUDOS to him for a well managed project!!
In the case I have added a toroidal transformer and although I was a bit reluctant with all these AC wires close to the PCB's, it turned out ok and without hum.

Let the pictures speak for themselves:

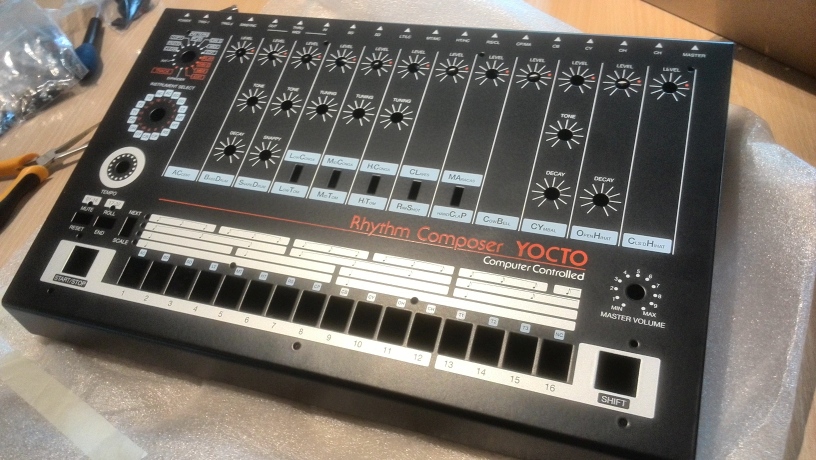

: IMG_20140913_160144.jpg (201.02 KiB)
This goes... Viewed 6965 times

: IMG_20140913_160154.jpg (253.95 KiB)
..into this Viewed 6965 times

: IMG_20140917_180247.jpg (216.17 KiB)
Toroidal transformer. It's a 2x 8V 1.25A, secondaries put in series to get +-16.5V Viewed 6966 times

Just some more pics

: IMG_20140917_180648.jpg (211.44 KiB)
Placed a piece of insulation between the C14 and pcb Viewed 6965 times

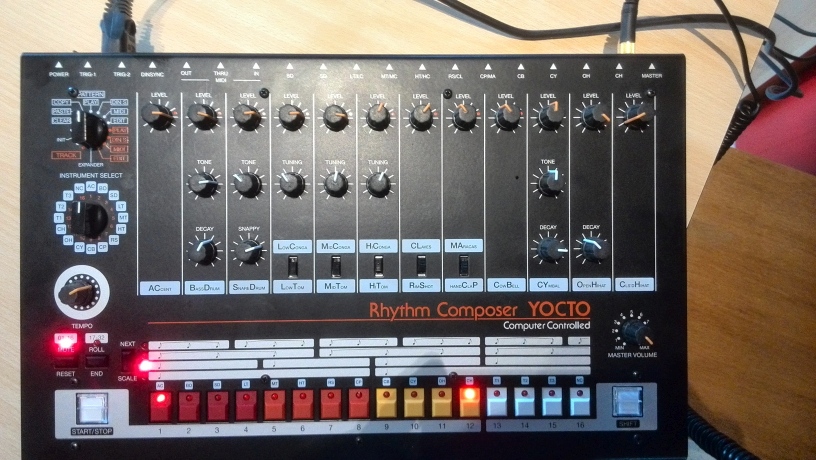

: IMG_20140917_181033.jpg (253.38 KiB)
It's woooorkinggg Viewed 6965 times

Cool! And that case looks really good

Thanks!

Credit for the case goes to ElSchtroumpf for organizing and managing the group buy.

Hi guys,
Mine is finished!!
Thanks Vincent for the kit and Wouter for the great case...

Hi everyone. could someone here sum up the list of "components" to buy to integrate the internal power supply? (wires, fuse, etc..)

Thank you in advance !
